Output Current Limit

CIRCUIT

Schematic: Op_Amp_ilim.asc
Op Amp Symbol: Opamp_3.asy
Op Amp Shematic: Opamp_3.asc
Right Click on filename, select "Save link as...",

Back to Design Series

SPEC IT

Intro	The output stage of an op amp is designed to limit the output current to a maximum level. Why? If the output is accidentally short circuited, the current limit prevents the op amp from going up in smoke.
Definition	Ilim - defines the maximum output current
Design Goal	Deliver a 10V signal into the expected load
Design Spec	Vo ≥ 10V into a 200 Ω load

DESIGN IT

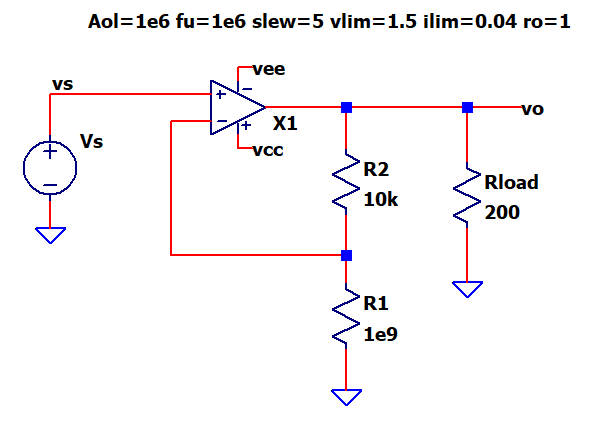

• Circuit Design
  • Unity Gain: Kcl = 1V/V
  • R2=10k, R1=open
  • Rload = 200 Ω
• Op Model Param
  • Aol=1e6 fu=1e6 slew=5 vlim=1.5 ilim=0.04 ro=1
  • Max output current is 40mA.
• Circuit Test
  • Drive the input to 10V
     .step param Vstep list 1V 5V 10V
      Repeats simulation for 3 levels of Vstep.
  • Expected Vo ≥ 10V

TEST IT

• Run a Transient simulation. (.TRAN)
• Plot v(vs), v(vo) and measure the highest output voltage level.
• Add another plot and add trace i(rload). Measure the highest output current level.
• Did it meet spec?
  • If Vo ≥ 10V, then PASS, else FAIL
•  DESIGN ISSUE: The output current fails to meet spec!

SOLVE IT

• Incrementally increase Ilim.
• Rerun the SPICE sim.
• What Ilim is needed to meet spec?

THEORY REFRESH

• How does the output stage regulate a max current?

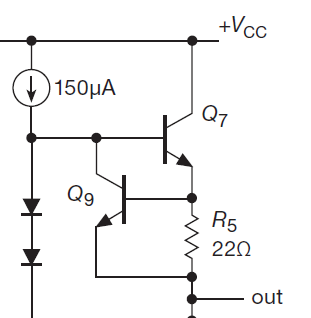

  Let's take a look at a typical positive output structure.

• What components make up the final output stage?
  • Q7 - the output transistor that delivers positive output current.
  • R5 - the resistor used to sense the output current.
  • Q9 - the transistor that regulates max current.
• Why is a current limit needed?
  • If a positive vout is shorted to GND (0V), then almost all of the VCC rail voltage falls across Q7!
  • Consequently the power in Q7 (at max current) rises to approximately P_Q7 = Io_max x Vcc.
  • Q7 must be a physically large enough device to keep its junction temperature low.
  •  Same holds true for the negative output transistor and supply.
• So how do they work together?
  • Q7 delivers Iout into the load.
  • Q7 requires a base current Ib ≈ Iout / Β where Β is it's current gain.
  • The previous stage (unseen to the left) raises the diode string voltage to allow enough of the 150uA to flow into the Q7 base for the required Iout.
  • During normal operation Q9 is OFF.
  • However, if the current through R5 develops a voltage large enough so that R5*Iout = Vbe_Q9 > 0.65V, then Q9's Vbe turns on and steals away Q7 base current to regulate Iout to a level:
    Iout_max = Vbe / R5.
• The specific Ilim for an op amp device will vary depending on its output structure and actual devices.

• What happened to our original design?
  • The original op model had a current limit of Ilim = 40mA
  • The expected max output current required is
      Iout_max = 10V / 200 = 50mA

• Let's solve it
  • Set Ilim for the Iout_max greater than max expected max.
  • Retest the circuit with the new Vlim. Did your circuit meet spec?

   Select an op amp that meets or exceeds your required Ilim.
